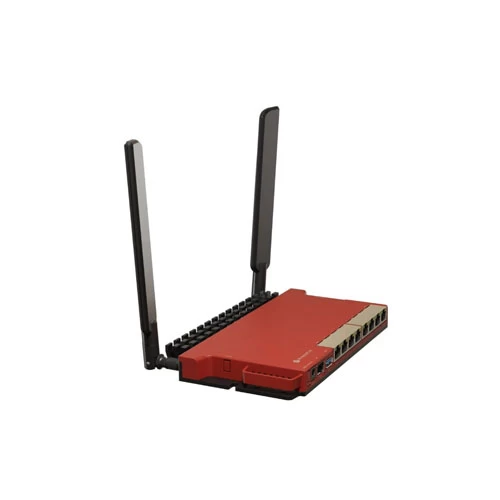

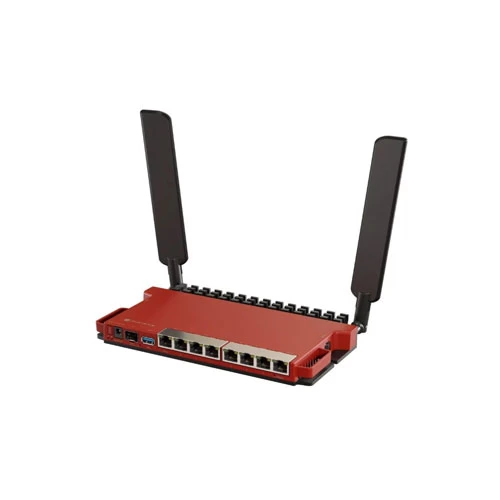

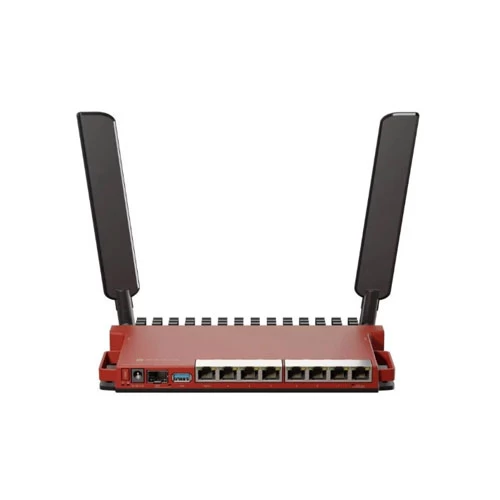

MikroTik WIFI Router L009UiGS2HaxD-IN
- General Specifications:
- The MikroTik L009UiGS-2HaxD-IN is a powerful and versatile router designed to deliver high performance and advanced connectivity in a compact form factor.
- It features a 32-bit ARM quad-core CPU that ensures fast and efficient network traffic processing.
- The router supports 2.4 GHz Wi-Fi with 802.11ax (Wi-Fi 6) for faster and more reliable wireless connections. It also includes 8 Gigabit Ethernet ports for wired devices, along with an SFP port for fiber connections, a USB port, and an RJ45 serial console for flexible management.
- Running RouterOS with a level 5 license, the device supports advanced features such as routing, firewall, VPN, VLAN, and more.
- Its fanless design ensures silent operation and long-term stability.
- This router is an excellent choice for advanced home users, small offices, or businesses that need strong performance and stable Wi-Fi coverage.
Router Mikrotik | |
Details | Product code L009UiGS-2HaxD-IN Architecture ARM CPU IPQ-5018 CPU core count 2 CPU nominal frequency 800 MHz Switch chip model 88E6190 RouterOS license 5 Operating System RouterOS v7 Size of RAM 512 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C |
Powering | Number of DC inputs 2 (PoE-IN, DC jack) DC jack input Voltage 24-56 V Max power consumption 47 W Max power consumption without attachments 14 W PoE in 802.3af/at Cooling type Passive PoE in input Voltage 24-56 V |
PoE-out | PoE-out ports Ether8 PoE out Passive PoE Max out per port output (input 18-30 V) 1 A Max out per port output (input 30-57 V) 450 mA Max total out (A) 1.0 A |
Ethernet | 10/100/1000 Ethernet ports 8 Number of 1G Ethernet ports with PoE-out 1 |
Fiber | SFP ports 1 (2.5G supported) |
Peripherals | Serial console port RJ45 Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1.5 |
Wireless specifications | 2.4 GHz Transmit (dBm) Receive Sensitivity 1MBit/s 27 -100 11MBit/s 27 -94 6MBit/s 30 -96 54MBit/s 28 -80 MCS0 30 -96 MCS7 27 -75 MCS9 25 -70 MCS11 23 -67 |
Wireless capabilities | Wireless 2.4 GHz Max data rate 574 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n/ax Antenna gain dBi for 2.4 GHz 4 Wireless 2.4 GHz chip model IPQ-5018 Wireless 2.4 GHz generation Wi-Fi 6 WiFi speed AX600 |
