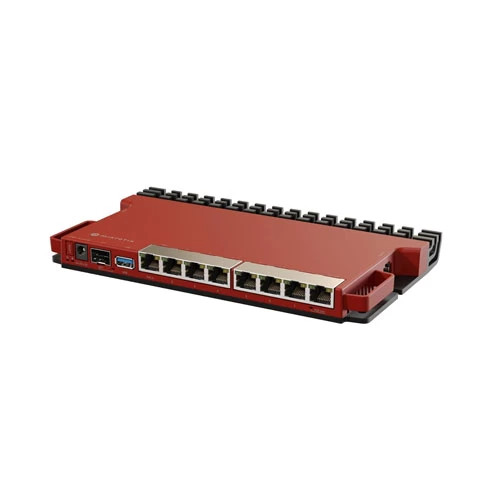

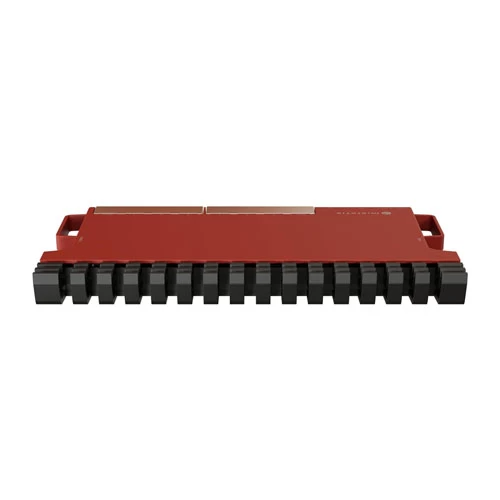

MikroTik Ethernet Router L009UiGS-RM
- General Specifications:
- The MikroTik L009UiGS-RM is a high-performance wired router designed for modern networking environments such as offices, SMBs, and enterprise edge setups. It comes in a compact rackmount form factor and delivers reliable connectivity and advanced routing capabilities.
- Powered by a dual-core ARM CPU at 800 MHz and equipped with 512 MB of RAM, this router ensures fast processing and smooth network performance. It also includes 128 MB of NAND storage for configuration and OS.
- The device features 8x Gigabit Ethernet ports, 1x SFP port (up to 2.5G), 1x USB 3.0 port, and an RJ45 serial console. It supports PoE-in for power input, and PoE-out on Ether8 for powering other devices.
- Running RouterOS v7 with a Level 5 license, it offers advanced features such as dynamic routing, firewall, bandwidth control, VPN, VLAN, and more. Passive cooling ensures quiet and stable operation in demanding environments.
Router Mikrotik | |
Details | Product code L009UiGS-RM Architecture ARM CPU IPQ-5018 CPU core count 2 CPU nominal frequency 800 MHz Switch chip model 88E6190 RouterOS license 5 Operating System RouterOS v7 Size of RAM 512 MB Storage size 128 MB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40°C to 70°C |
Powering | Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 24-56 V Max power consumption 40 W Max power consumption without attachments 8 W PoE in 802.3af/at Cooling type Passive PoE in input Voltage 24-56 V |
PoE-out | PoE-out ports Ether8 PoE out Passive PoE Max out per port output (input 18-30 V) 1 A Max out per port output (input 30-57 V) 450 mA Max total out (A) 1 A |
Ethernet | 10/100/1000 Ethernet ports 8 Number of 1G Ethernet ports with PoE-out 1 |
Fiber | SFP ports 1 (2.5G supported) |
Peripherals | Serial console port RJ45 Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1.5 |
